Typical Use Cases

In this section, we provide a general overview of some typical use cases of the IRISOCR™ SDK.

A drawing for each use case describes:

(a) the main steps to be taken,
(b) the main object to create or to modify in each step and
(c) the main classes involved in the step.

NOTES

  • Pages are processed independently.

  • The step Enhance the image (Preprocessing), is optional and depends on the quality of your image. The IRISOCR™ SDK offers many image enhancement functionalities. The full list of these functionalities can be found in the API REF > Preprocessing / Advanced preprocessing.

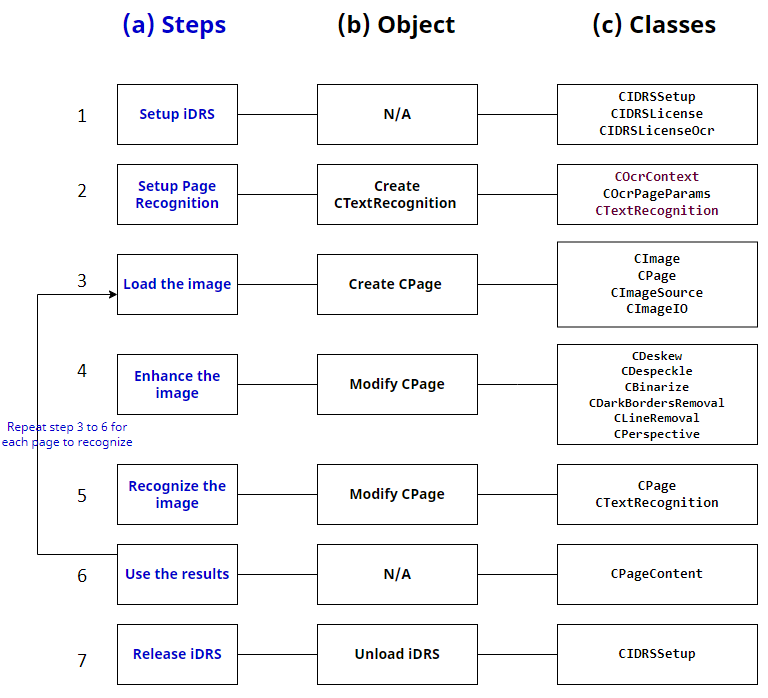

Full page text recognition

Embedded
Image 1. Steps in a full-page text recognition scenario

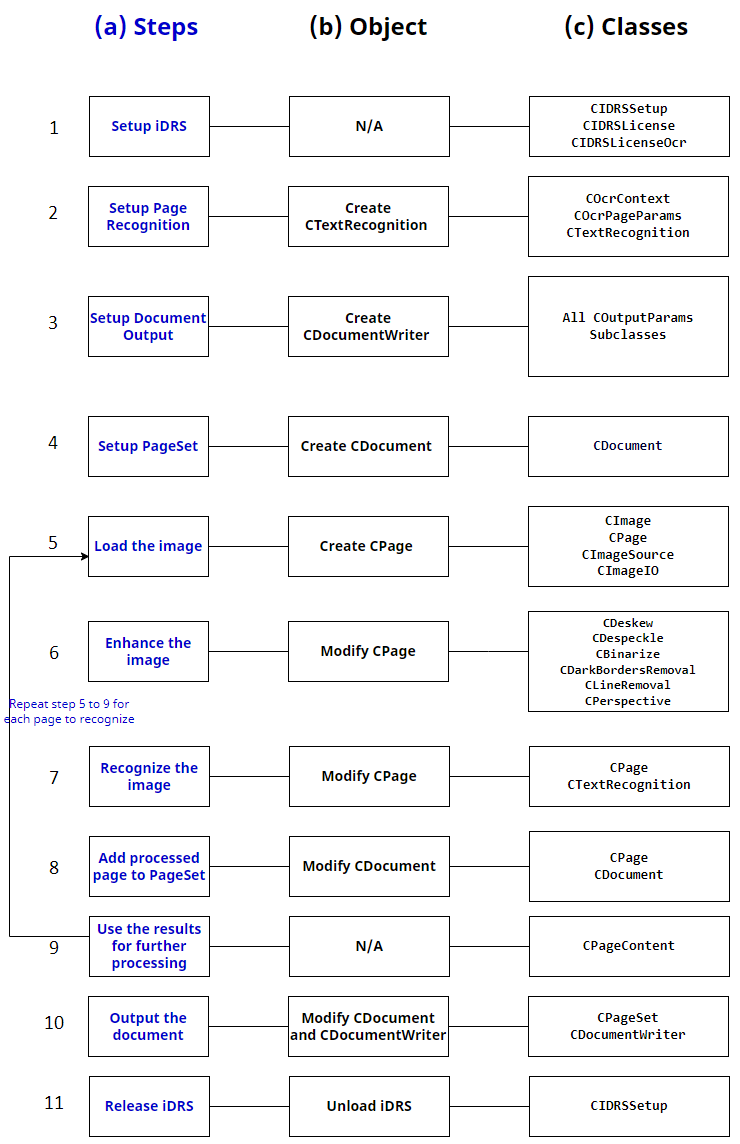

Full page text recognition and formatting

Embedded
Image 2. Steps in a full-page text recognition and formatting scenario

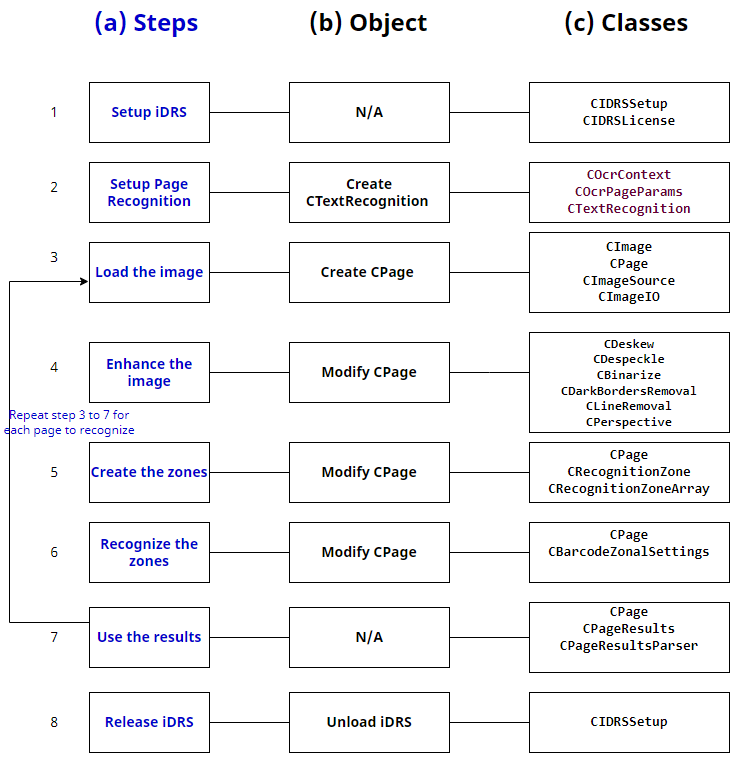

Zonal text recognition

Embedded
Image 3. Steps in a zonal text recognition scenario
