Installation and configuration

Platform-specific SDK packages

The SDK is distributed in different formats depending on the target platform.

Platform Distribution format

Windows, Android

.zip

Linux

.tar.bz2

macOS, iOS

.dmg

.NET

NuGet packages (.nupkg)

Installation steps

Windows and Android

  1. Download the SDK .zip package.

  2. Extract the contents to a local directory.

Linux

  1. Download the SDK .tar.bz2 package.

  2. Extract the archive using the following command:

    tar -xvjf <filename>.tar.bz2

macOS and iOS

  1. Download the SDK .dmg file.

  2. Mount the disk image.

  3. Copy the contents to a local directory.

NuGet (.NET)

  1. Open your project in Visual Studio.

  2. Add the required NuGet packages using one of the following methods:

    • The Visual Studio Package Manager

    • The .NET CLI:

      dotnet add package <PACKAGE_NAME>

Toolkit Content

The IRISOCR™ SDK package contains the following folders and subfolders:

Folder Windows Linux macOS Android iOS

Welcome page
(Documentation)

Gateway to documentation

bin

Samples and utility binaries

Samples and utility binaries

SDK framework + utilities + C wrapper (.dll and .xml)

Precompiled samples (empty now)

SDK framework

include

Header files

Header files

Header files

include_c

C headers

C headers

C headers

lib

.lib file for DLL

.so files + idrs_cs_wrapper.dll and idrs_cs_wrapper.xml

.so files for all available ABIs

redist

Visual Studio redistributables (VS2022)

resources

All resources needed for characters recognition, such as lexicons and fonts dictionaries.

samples

C, C++, C# examples

C, C++, C# examples

C, C++, C# examples

SmartCapture

SmartCapture

work

Images for testing purposes

  1. See the next tables per platform for a detailed description of all the binaries.

  2. Also, refer to Files required for your application.

List of files that are contained in the bin subfolder

Windows
Table 1. Windows - bin subfolder
File Type File name Description

Libraries

idrsbarcode16.dll

Main Barcode engine

idrsbarcodeevoi.dll

Auxiliary barcode engine

idrsbarcodeext16.dll

QR code engine

idrsdmtx16.dll

Support for datamatrix barcodes

idrsdocout16.dll

Document output library

idrskrn16.dll

iDRS™ main library

idrsnetframework16.dll

.NET Framework API assembly

idrsnetframework16.xml

.NET Framework API documentation

idrsocr16.dll

OCR/ICR kernel

idrsimp16.dll

Camera image preprocessing library

idrsprepro16.dll

Image preprocessing library

idrstiff16.dll

Tiff library

idrszlib16.dll

Zlib library

idrsjpeg2k16.dll

Wavelet compression library

idrsjbig216.dll

Symbol compression library

idrsjpeg16.dll

Jpeg encoding library

idrspng16.dll

PNG encoding library

idrsc16.dll

C API runtime

idrsnet16.dll

.NET API assembly

idrsnet16.xml

.NET API documentation

Sample Applications

CppBarcode16.exe

This sample application demonstrates the barcode recognition features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Barcode.

CppImage2Html16.exe

This sample application shows how to convert an image to html text. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Image2Html

CImage2Html16.exe

This sample application shows how to convert an image to html text. This sample is built using the C API. The source code can be found in <IDRS_SDK_ROOT>samples/c/Image2Html

CppReader16.exe

This sample application demonstrates the character recognition and the document output features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Reader

CsBarcode16.exe

This sample application demonstrates the barcode recognition features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Barcode

CsImage2Html16.exe

This sample application shows how to convert an image to html text. his sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Image2Html

CsReader16.exe

This sample application demonstrates the character recognition and the document output features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Reader
macOS
Table 2. macOS - bin subfolder
File Type File name Description

bin/Framework

iDRS16.framework

iDRS™ framework

bin

libidrsc16.dylib

C API runtime

idrsnet16.dll

.NET API assembly

idrsnet16.xml

.NET API assembly documentation

Sample Applications

CppBarcode16

This sample application demonstrates the barcode recognition features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Barcode.

CppImage2Html16

This sample application shows how to convert an image to html text. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Image2Html

CppReader16

This sample application demonstrates the character recognition and the document output features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Reader

CImage2Html16

This sample application shows how to convert an image to html text. This sample is built using the C API. The source code can be found in <IDRS_SDK_ROOT>samples/c/Image2Html

CsBarcode16

This sample application demonstrates the iDRS™ barcode recognition features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Barcode

CsImage2Html16

This sample application shows how to convert an image to html text. his sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Image2Html

CsReader16

This sample application demonstrates the character recognition and the document output features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Reader
Linux
Table 3. Linux - bin subfolder
File Type File name Description

Utility Programs

linux_install_idrs.sh

Shell script used to create symbolic links for the files needed by the SDK.

Sample Applications

CppBarcode16

This sample application demonstrates the barcode recognition features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Barcode.

CppImage2Html16

This sample application shows how to convert an image to html text. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Image2Html

CppReader16

This sample application demonstrates the character recognition and the document output features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Reader

CImage2Html16

This sample application shows how to convert an image to html text. This sample is built using the C API. The source code can be found in <IDRS_SDK_ROOT>samples/c/Image2Html

CsBarcode16

This sample application demonstrates the barcode recognition features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Barcode

CsImage2Html16

This sample application shows how to convert an image to html text. his sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Image2Html

CsReader16

This sample application demonstrates the character recognition and the document output features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Reader

In the lib subfolder, you can also find:

  • libidrsc16.so.version: C API runtime

  • idrsnet16.dll: .NET API assembly

  • idrsnet16.xml: .NET API assembly documentation

Environment setup

You need to establish the correct environment before using the toolkit.

The distribution package contains the full versioned library names for which symbolic links need to be created in the correct place. The package contains a utility shell script that takes care of creating all the necessary symbolic links for you.

In order to invoke the shell script, follow these instructions:

  1. Open a terminal window and go to the path where you unpacked the tar.bz2 archive containing the package.

  2. Go to the bin folder

  3. Execute

    sh linux_install_idrs.sh
Shell script

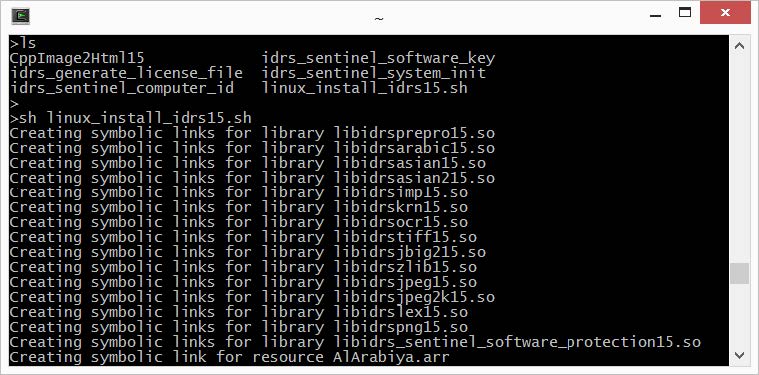

Image 1. Execute linux_install_idrs.sh

After creating the necessary symbolic links, you need to set the LD_LIBRARY_PATH environment variable to point to the lib folder.

Run the following command:

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:<path_to_iDRS_package>/lib/
env variable
Image 2. Set LD_LIBRARY_PATH environment variable
You can add the above command to your .bash_profile not to repeat it each time you launch a new terminal window.

You are now able to use the toolkit.
You can launch the sample application CppImage2Html16 to test that everything works fine.

Android

Host setup

To build Android applications using the IRISOCR™ SDK, make sure that the following elements are installed on the host computer:

  1. Android SDK
    The toolkit is compatible with Android 4.2.2 (API 17) or higher. At least one API must be installed.

  2. Android NDK
    As the IRISOCR™ SDK consists in native libraries, you need to have the Android NDK (Native Development Kit) available on your host computer.

    No path with spaces
    Known issue with the Android NDK: compilation may fail if the path to the installed NDK package contains spaces!

  3. Android Studio
    The official IDE for Android development is Android Studio. Of course, alternatives do exist and may be used instead.

Android Compatibility

  • SDK version or target SDK version must be at least Android API 17.

  • Android guidelines say native libraries of an Android application should link against shared C++ runtime, and all libraries should use the same runtime (see https://developer.android.com/ndk/guides/cpp-support.html) . The IRISOCR™ SDK follows that directive.

NuGet distribution

The NuGet distribution comprises the following packages (.nupkg):

  • All-in-one packages:
    This package automatically downloads all the components required to use iDRS on any supported operating system and architecture:

    • iDRS

  • Platform packages:
    These packages automatically download all components needed to use iDRS on a specific operating system, regardless of architecture:

    • iDRS.macOS

    • iDRS.Windows

    • iDRS.Linux

  • Architecture packages:
    These packages download the components required to use iDRS on a specific operating system and architecture:

    • iDRS.Windows-x86

    • iDRS.Windows-x64

    • iDRS.Windows-arm64

    • iDRS.Linux-x64

    • iDRS.Linux-arm64

    • iDRS.Linux-arm

  • Low-level packages:
    These packages are downloaded automatically when using a platform or architecture package. They can also be referenced directly when additional flexibility or fined-grained control is required:

    • iDRS.assets – Resources files required to perform OCR.

    • iDRS.NET – The .NET assemblies.

    • iDRS.runtime-\<platform-arch\> – Native libraries for each supported platform and architecture.

An image is worth a thousand words:

Embedded

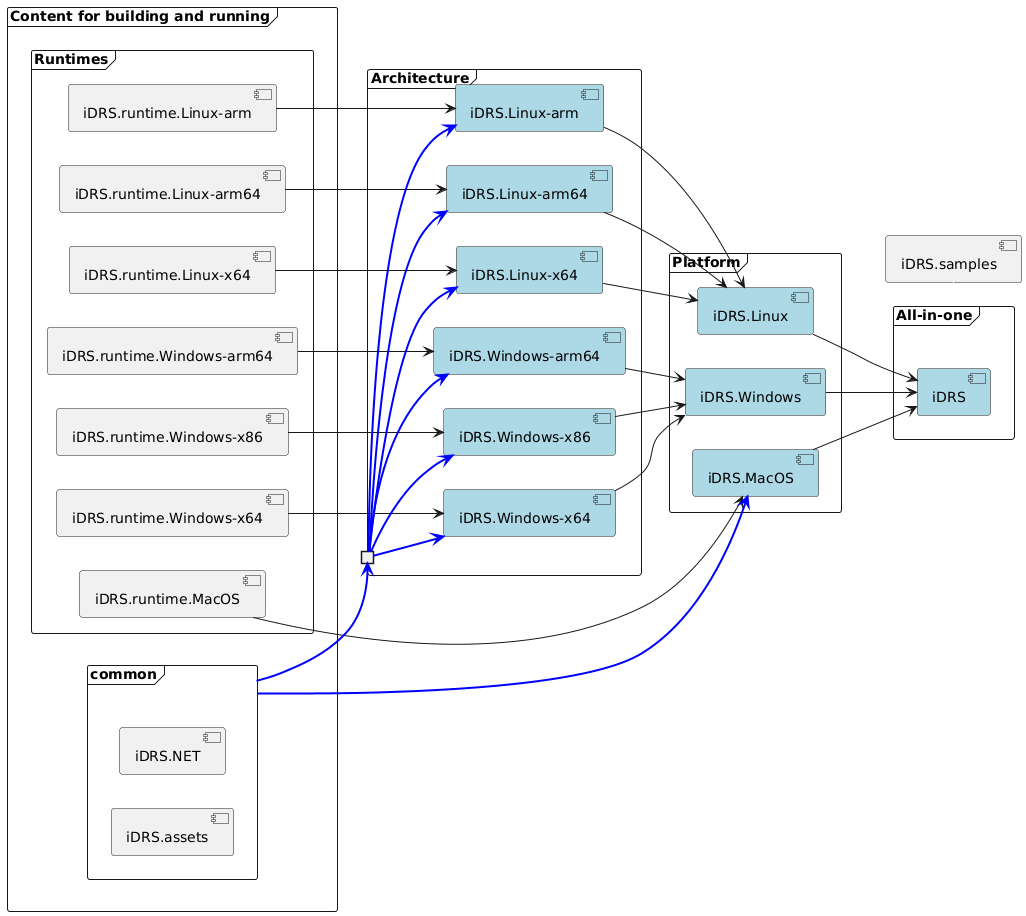

Image 3. NuGet packages: illustration of how content packages (grey) are included in wrapper packages (blue).
